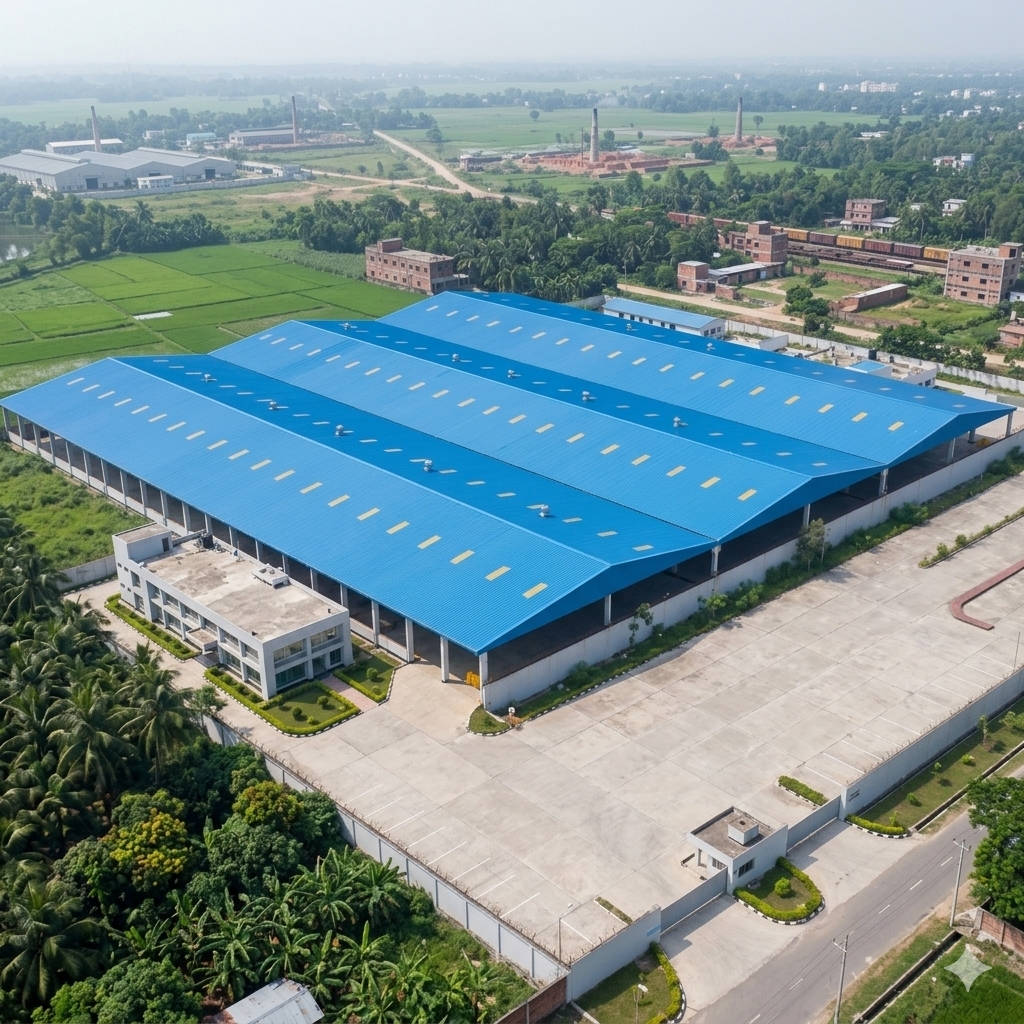

Product Name: Steel Prefabricated Multi Gable Factory Shed

Product Code: 61PMSS109

Product Description:

Our Steel Prefabricated Multi Gable Factory Sheds offer a modern, highly durable, and cost-effective structural solution for industrial and commercial operations. Engineered with precision using high-tensile structural steel, these pre-engineered buildings (PEBs) are designed to maximize usable floor space by eliminating internal columns.

Manufactured under strict quality control standards, each component is pre-cut, drilled, and welded at the factory, ensuring lightning-fast on-site assembly. Whether you need a small workshop or a massive heavy-industrial factory floor, our customizable steel sheds provide unparalleled strength, weather resistance, and long-term value.

Technical Specifications:

Category / Parameter	Standard Specifications
1. Structure Design & Codes
Structure Type	Multi-Gable Pre-Engineered Steel Building (PEB)
Standard Design Codes	AISC, MBMA, AWS, and BNBC (Bangladesh National Building Code)
Roof Slope	1:6-1:12 (Depending on water discharge requirements)
Bay Spacing	6.0m to 7.5m (Standard column-to-column distance)
Clear Eave Height	6.0m to 12.0m (Customizable based on machinery/clearance)
2. Primary Frame Structure
Columns & Rafters	Built-up "I" sections made of High-Tensile Steel (ASTM A572 Grade 50 or equivalent)
Yield Strength (Fy)	Minimum 345MPa (50ksi)
Fabrication & Welding	Factory-fabricated using Submerged Arc Welding (SAW)
Surface Treatment	Shot-blasting followed by 1 coat of Epoxy Primer and 2 coats of Synthetic Enamel Paint
3. Secondary Frame Structure
Purlins & Girts	Cold-Formed "Z" or "C" sections (ASTM A653 Grade 50 or equivalent)
Galvanization	120-275 g/m2 Zinc coating for premium corrosion resistance
Bracing System	Rod, Angle, or Pipe bracing for wind and seismic stability
4. Roof & Wall Cladding
Roof Sheet Material	0.45mm to 0.50mm Aluzinc/Galvalume Color Coated Profile Sheets
Wall Cladding	0.40mm to 0.45 Profile Sheets (Can be combined with a 3'–10' brick wall at the bottom)
Insulation (Optional)	50 Glass Wool or Rock Wool with Aluminum Foil backing
5. Multi-Gable Drainage
Central/Valley Gutter	Heavy-duty 1.2mm to 2.0 Stainless Steel (SS304) or Galvanized Iron (GI) to prevent water leakage between gables
Downtake Pipes	High-diameter PVC or GI pipes designed for peak rainfall intensity
6. Fasteners & Connections
Anchor Bolts	High-strength foundation Anchor Bolts (Grade 4.6 / 8.8)
Primary Connections	High-Tensile Bolts & Nuts (ASTM A325 or A490)
Sheet Fasteners	Anti-corrosive Self-Drilling/Self-Tapping Screws with EPDM Washers
7. Ventilation & Lighting
Skylight Sheets	2% to 5% of total roof area using Polycarbonate or Fiberglass (FRP) sheets
Ridge/Turbo Ventilators	Non-electric Aluminum or SS Turbo Ventilators for continuous air circulation
Louvers	Fixed Steel/Aluminum Louvers on sidewalls for natural ventilation

Key Features:

• Clear-Span Design: Eliminates interior support columns to maximize open floor space for heavy machinery, assembly lines, and internal logistics.
•

• Rapid Installation: Factory-prefabricated components bolt together seamlessly on-site, cutting construction time by up to 50% compared to traditional brick-and-mortar buildings.
•

• Unmatched Durability: Engineered to withstand extreme weather conditions, including heavy winds, earthquakes, and torrential rains.
•

• Low Maintenance & Pest Resistant: High-grade coated steel resists rust, corrosion, termites, mold, and fire, significantly reducing long-term upkeep costs.
•

• Highly Customizable & Expandable: Easily modify or expand the structure in the future to adapt to your growing business needs.
•

• Eco-Friendly & Sustainable: Made from 100% recyclable structural steel, minimizing construction waste and supporting green building standards.

Ideal Applications:

Our prefabricated steel sheds are versatile structures suitable for a wide range of industrial, commercial, and agricultural uses:

•

• Manufacturing Units: Ideal for automotive, textile, chemical, and heavy machinery production lines.
•

• Warehousing & Logistics: Perfect for large-scale distribution centers, cold storage, and inventory hubs.
•

• Workshops & Showrooms: Great for commercial garages, service centers, and spacious retail showrooms.
•

• Agricultural Buildings: Suitable for grain storage, livestock housing, and farm machinery protection.
•

• Aircraft Hangars & Infrastructure: Capable of housing large equipment, aircraft, or mass transit servicing stations.
